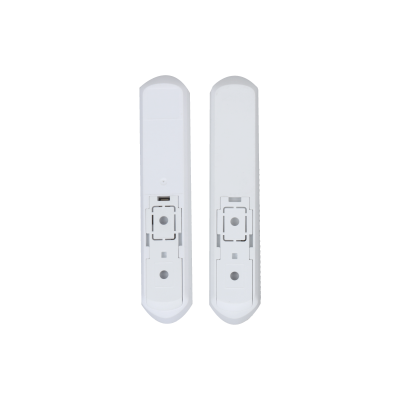

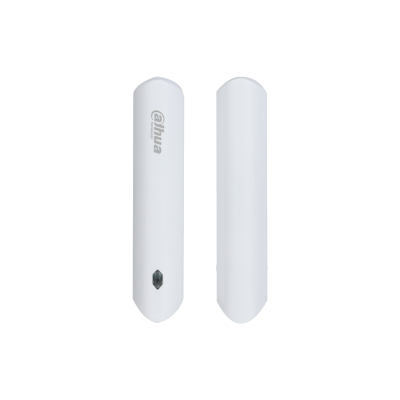

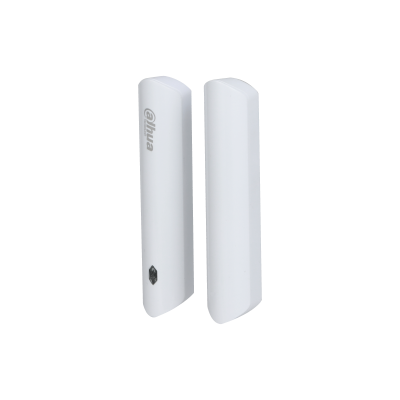

DHI-ARD323-W2(868), Magnetic contact Wireless

Name: DHI-ARD323-W2(868), Magnetic contact Wireless
Brand: Dahua
SKU: DHI-ARD323-W2(868)
Price: 35.0 CHF
Availability: InStock

0 reviews

DHI-ARD323-W2, Magnetic Contact Wireless The DHI-ARD323-W2 is a wireless magnetic contact with apparent mounting for the Dahua alarm system, suitable... Read more

Delivery time 1-2 working days

CHF 53.00CHF 43.80 -34% -34%
CHF 35.00CHF 28.93 Incl. VATExcl. VAT

Cheaper somewhere else?

B2B-Installateure bestellen mit Rabatt

Registrieren Sie sich

Showroom in Gorinchem

The best service and warranty

3500+ customers give us a 4.71 / 5

Free remote installation

Free returns within 14 days

Associated products for DHI-ARD323-W2(868), Magnetic contact Wireless

DahuaDHI-ARC3000H-FW2, Alarm hub, Ethernet + WiFi and 4G, up to 150 detectors

No reviews

CHF 317.00CHF 261.98 -25% -25%
CHF 238.00CHF 196.69 Incl. VAT Excl. VAT
DahuaDHI-ARK30T-W2, Wireless Keypad

No reviews

CHF 155.00CHF 128.10 -41% -41%
CHF 91.00CHF 75.21 Incl. VAT Excl. VAT

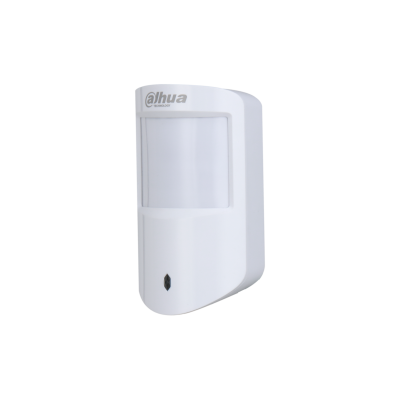

DahuaDHI-ARD2231-W2, Wireless PIR DUAL Detector

No reviews

CHF 111.00CHF 91.74 -26% -26%
CHF 82.00CHF 67.77 Incl. VAT Excl. VAT

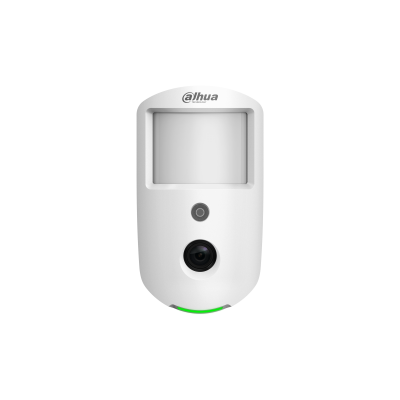

DahuaDHI-ARD1731-W2, Wireless PIR Camera

No reviews

CHF 187.00CHF 154.55 -25% -25%
CHF 140.00CHF 115.70 Incl. VAT Excl. VAT

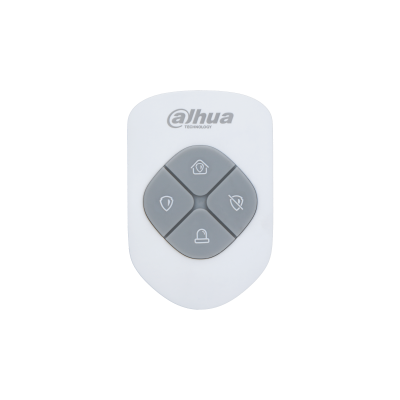

DahuaDHI-ARA24-W2(868) Wireless Keyfob

No reviews

CHF 38.00CHF 31.40 -26% -26%
CHF 28.00CHF 23.14 Incl. VAT Excl. VAT

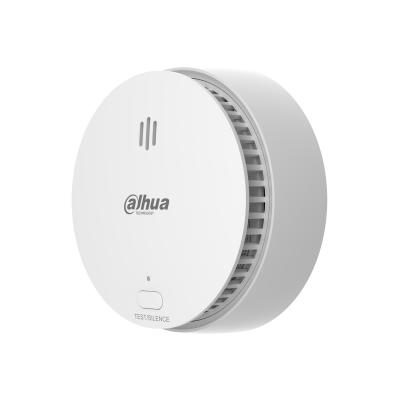

DahuaDHI-HY-SA21A-W2(868) Wireless Smoke Detector

No reviews

CHF 75.00CHF 61.98 -17% -17%
CHF 62.00CHF 51.24 Incl. VAT Excl. VAT
DahuaDHI-ARA13-W2(868) Wireless Outdoor Siren With Red Flash

No reviews

CHF 167.00CHF 138.02 -25% -25%
CHF 125.00CHF 103.31 Incl. VAT Excl. VAT

DHI-ARD323-W2, Magnetic Contact Wireless

The DHI-ARD323-W2 is a wireless magnetic contact with apparent mounting for the Dahua alarm system, suitable for securing doors and windows. It has a reed contact, up to 40 mm opening, 1 dry contact input, low battery warning, LED indicator and tamper protection. In addition, the contact can measure the temperature level with an accuracy of ±1°C in the range from -15°C to +65°C.

The DHI-ARD323-W2 communicates bidirectionally at distances of up to 1200 m in open space, using wireless frequency 868 MHz, with protection by AES128 encryption and frequency hopping. The rugged housing, made of high-quality PC + ABS material, allows use in temperatures between -10°C and +55°C, and is designed for indoor applications. It is powered by a CR123A battery with an autonomy of up to 5 years.

Specificaties:

Port
Indicator Light - 1 × green alarm indicator
Button - 1 × power button

Function
Tamper Alarm - Yes
Remote Upgrade - Cloud update
Low Battery Alarm - Yes
Test Mode - Yes
Search - Signal strength detection

Wireless
Carrier Frequency - 868.0 MHz-868.6 MHz
Communication Distance - Up to 1,200 m (3,937.01 ft) in an open space
Communication Mechanism - Two-way
Frequency Hopping - Yes
Encryption Mode - AES128

General
Power Supply - CR123A battery
Power Consumption - Max. 125 mW
Operating Temperature - -10 °C to +55 °C (+14 °F to +131 °F) (indoor)
Operating Humidity - 10%-90% (RH)

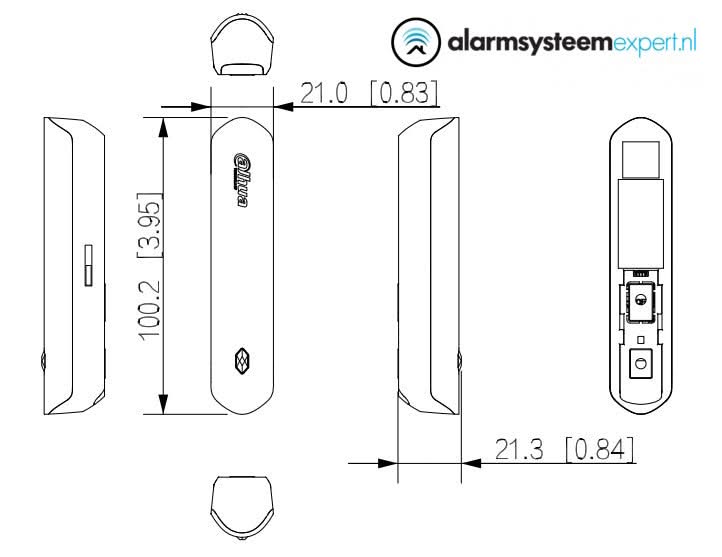

Product Dimensions - 100.2mm × 20.8mm × 20.3mm (3.94"× 0.82" ×0.80") (L × W × H)
Packaging Dimensions - 135.0mm × 98.5mm × 27.8mm (5.31" × 3.88" × 1.09") (L × W × H)
Installation - Bracket mount
Net Weight - 70 g (0.15 lb)
Gross Weight - 115 g (0.25 lb)
Certifications -CE
Battery Life - 5 years
Casing Material - PC + ABS

Temperature
Measuring Range - -15 °C to +65 °C (+18.8 °F to +149 °F) (indoor)
Measuring Precision - ± 1 °C (± 33.8 °F)
Resolution - 1 °C (33.8 °F)

Specification
Sensor - Reed Switch
Scenario - Non-metal doors
Movement Distance - < 40 mm (1.57")
