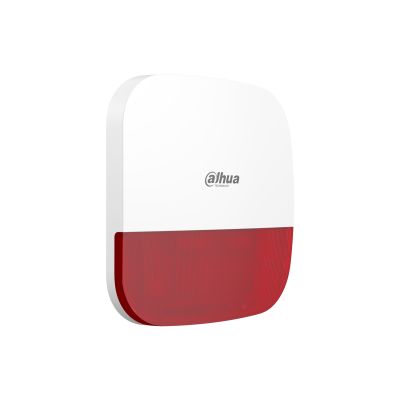

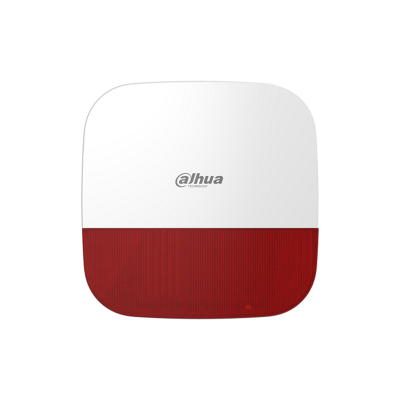

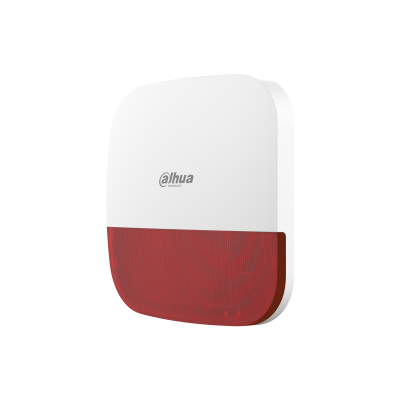

DHI-ARA13-W2(868) Wireless Outdoor Siren With Red Flash

DHI-ARA13-W2(868) Wireless Outdoor Siren With Red Flash

With a maximum communication distance of up to 1,600 metres, the DAHUA DHI-ARA13-W2(868) WIRELESS OUTDOOR SIREN can provide a stable wireless connection to the alarm system over a long distance without risk of latency.

The siren is equipped with indicator lights that provide clear visual information. A green alarm indicator shows whether the alarm has been activated or whether a particular alarm condition has been detected. The other 12 groups of alarm LEDs display various alarm-related states, such as wireless connection, battery status and operating mode.

In addition, this siren offers a variety of alarm sounds to meet specific security needs, such as fire, medical situations, burglaries and panic situations. With a sound pressure of up to 110 dB, it provides a powerful audible alarm.

An important feature of this siren is its two-way communication. It can not only transmit alarm signals and notifications, but also receive remote commands to deactivate or reset the alarm. This feature provides full interaction with the alarm system.

With its IP65 rating, this siren is resistant to dust and the elements. This means it can operate normally in a wide variety of climatic conditions.

The power supply is provided by a CR123A battery, but it can be connected to an external power source with a voltage of 12 VDC.

Specificaties:

• Function
• Indicator Light - 1 × green alarm indicator 12 × alarm LED groups
• Button - 1 × power switch
• Buzzer - 1 × buzzer
• Remote Update - Cloud update
• Low Battery Detection - Yes
• Battery Level Display - Yes
• Tamper - Yes
• Signal Strength - 7

  Wireless
• Carrier Frequency - 868.0 MHz-868.6 MHz
• Communication Distance - Up to 1,600 m (5,249.34 ft) in an open space
• Communication Mechanism - Two-way
• Frequency Hopping - Yes
• Encryption Mode - AES128

  General
• Power Supply Mode - Battery (default), 12 VDC
• Battery Model - CR123A
• Battery Life - 4 CR123A batteries can be used for 3.4 years (if triggered fortnightly and the alarm sounds for 120 s each time with a battery efficiency of 80%)
• Operating Temperature - -25 °C to +60 °C (-13 °F to +140 °F)
• Operating Humidity - 10%-90% (RH)

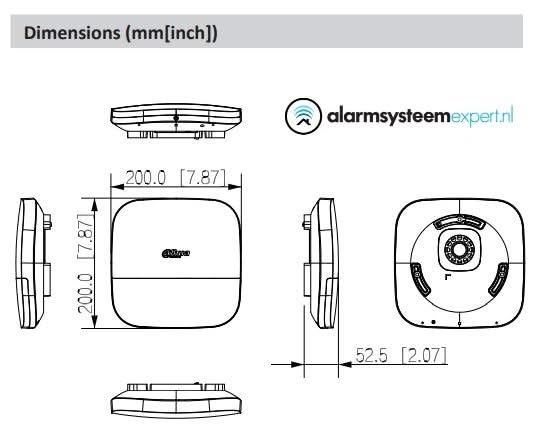

• Product Dimensions - 200 mm × 200 mm × 52.5 mm (7.87" × 7.87" × 2.07") (L × W × H)
• Packaging Dimensions 255 mm × 239 mm × 64 mm (10.04" × 9.41" × 2.52") (L × W × H)
• Net Weight - 610 g (1.34 lb)
• Gross Weight - 920 g (2.03 lb)
• Installation - Wall mount
• Casing - PC + ABS
• Protection - IP65
• Certifications - CE

  Technical
• Scenario - Outdoor
• Operating Current - 92 μA
• Alarm Current - 420 mA
• Sound and Light Alarm - Light alarm and multiple alarm sounds, including fire, medical, intrusion, panic, and more.
• Sound Pressure - 110 dB
