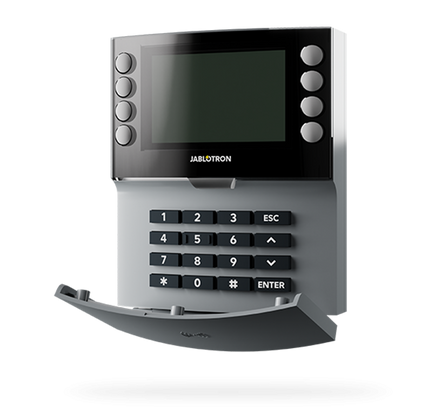

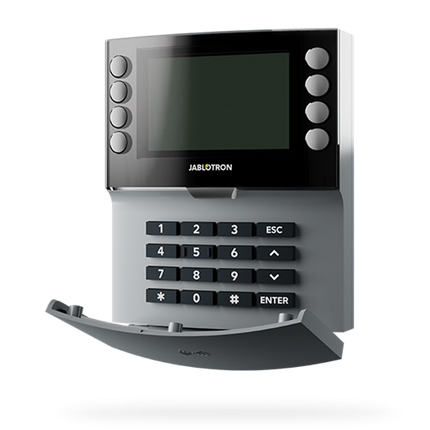

    JA-155E-GR, Wireless keypad with four-segment keypad, LCD and RFID reader

    The keypad is a wireless component of the JABLOTRON system. It serves to control and display system status indication. It is equipped with four segments; their descriptions are displayed on the LCD. The device must be installed by a trained technician with a valid certificate issued by an authorised distributor. The keypad is compatible with the following control panels JA-102K, JA-103K, JA-107K and JA-152KR.

    Specifications:

    Voedingsbron

    • 4 x alkaline batteries, type: AA (LR6) 1.5 V
    • Warning batteries are not included.
    • Typical battery life 1-2 years
    • LowBatt condition <4.5 V
    • Nominal current draw (6 V) 245 μA
    • Maximum current consumption (6 V) 115 mA
    • External power source 12 V +/-1 V typ. 45 mA, max. 100 mA
    • Maximum cable length 3 m
    • Communication band 868.1 MHz, JABLOTRON protocol
    • Maximum radio frequency power (ERP) <25 mW
    • Communication range approx. 200 m (open area)
    • RFID frequency 125 kHz
    • Maximum RFID magnetic field strength -5.4 dBμA/m (measured at 10 m)

    Afmetingen

    • 110 x 136 x 33 mm
    • Weight (without batteries)
    • 285 g

    Classificatie

    • Protection class 2/Environmental class II (according to EN 50131-1)
    • General environment

    Algemeen

    • Operating temperature range
    • -10 °C to +40 °C

    Average operating humidity

    • 75% RH, non-condensing
    • Certification body
    • Trezor Test s.r.o. (No 3025)

    In accordance with

    • ETSI EN 300 220-1,-2, ETSI EN 300 3300, EN 50130-4, EN 55032, EN 62368-1, EN 50581, EN 50131-1, EN 50131-3, EN 50131-5-3, EN 50131-6
    • Conditions of use according to general authorisation
    • ERC REC 70-03
