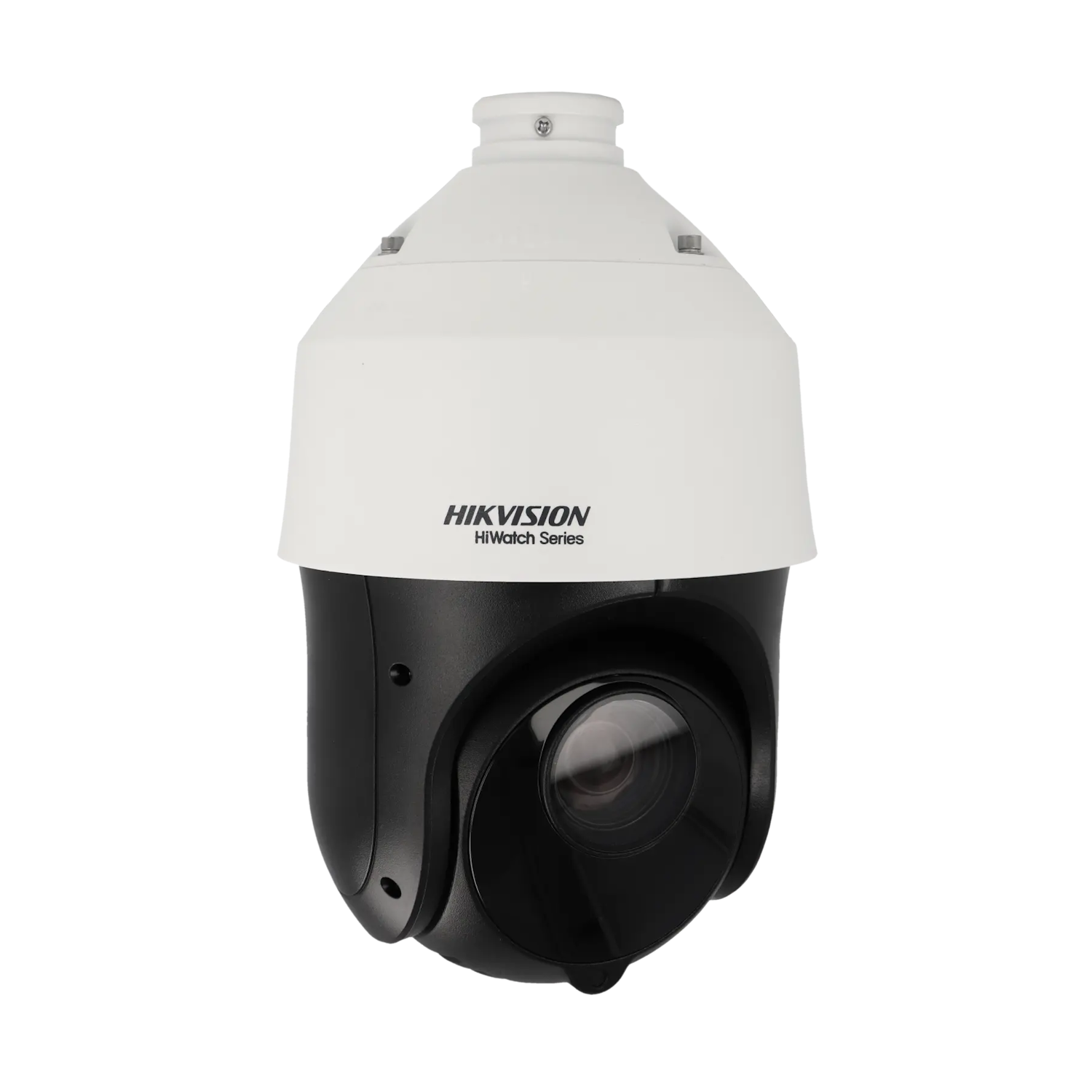

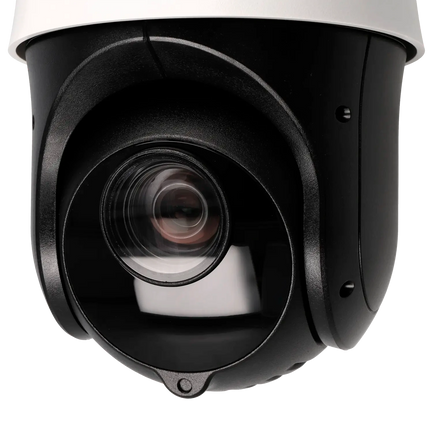

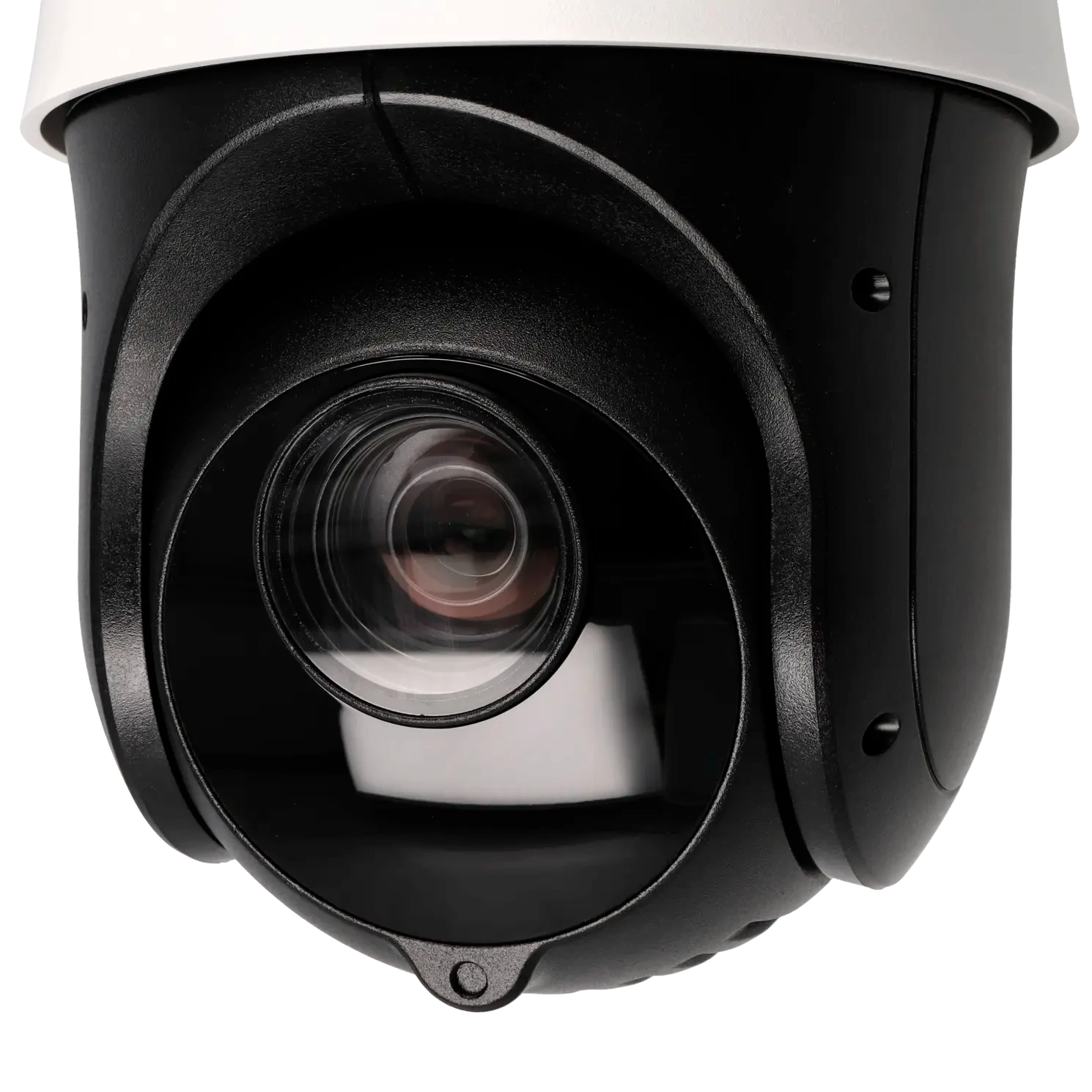

HWP-N4225IH-DE, 2MP PTZ with 25x optical zoom, 100m IR, PoE, MicroSD slot

The Hikvision HiWatch HWP-N4225IH-DE is a rugged, weatherproof PTZ network speed dome camera with powerful 25x zoom capabilities, ideal for both day and night surveillance of large outdoor areas. The camera combines high image quality with advanced features such as 120 dB WDR, IR illumination up to 100 meters and flexible motion control (pan/tilt/zoom).

• Ideal for surveillance of parking lots, business parks, logistics hubs, facades, access roads, perimeters where large viewing range is required.

• Also suitable for situations with changing light conditions (backlight, shadow, night).

• Where one wants control over what, where and when the camera is looking (presets, pattern scans, patrols).

Specifications:

• Resolution - 2 megapixel (Full HD, 1920×1080)

• Sensor - 1/2.8″ progressive scan CMOS

• Minimum illumination - Color: 0.005 Lux (F1.6, AGC on); Black/white: 0.001 Lux; 0 Lux with IR operating

• Lens/Zoom - 25× optical zoom (4.8-120 mm), supplemented by 16× digital zoom

• Image correction / Night modes.

  • Day/Night with IR-cut filter

  • Smart IR illumination up to approx. 100 m

  • 120 dB Wide Dynamic Range (WDR) for strong backlight situations

• PTZ control

  • Pan: 360° (continuous)

  • Tilt: -15° to +90° with auto-flip function

  • Speed: adjustable between 0.1°/s and 80°/s; preset speed up to 80°/s

  • Presets, pattern scans, patrols, etc.

• Image streams & compression

  • Supports multiple streams (main/sub/third), with frame rates of 25/30 fps depending on frequency range (50/60Hz)

  • Compression: H.265+, H.265, H.264+, H.264, possibly MJPEG at lower resolutions

• Network & storage

  • Ethernet RJ-45 (10/100), PoE+ (802.3at, Class 4) support in addition to 12 V DC power supply capabilities

  • MicroSD card slot up to 256GB for local storage

• Security & additional features

  • Privacy masks (24 zones)

  • Region of Interest (ROI) per stream

  • Detections such as motion detection, intrusion/passage detection, line crossing etc.

• Robustness / Environment

  • IP66 rating - resistant to dust and water outdoor use

  • Operating temperature: approximately -30 °C to +65 °C

  • Weather/light & lightning protection (surge protection)

• Dimensions & weight - Diameter approx. 165.9 mm × height 290 mm; Weight approx. 2.5 kg (without mounting bracket)
