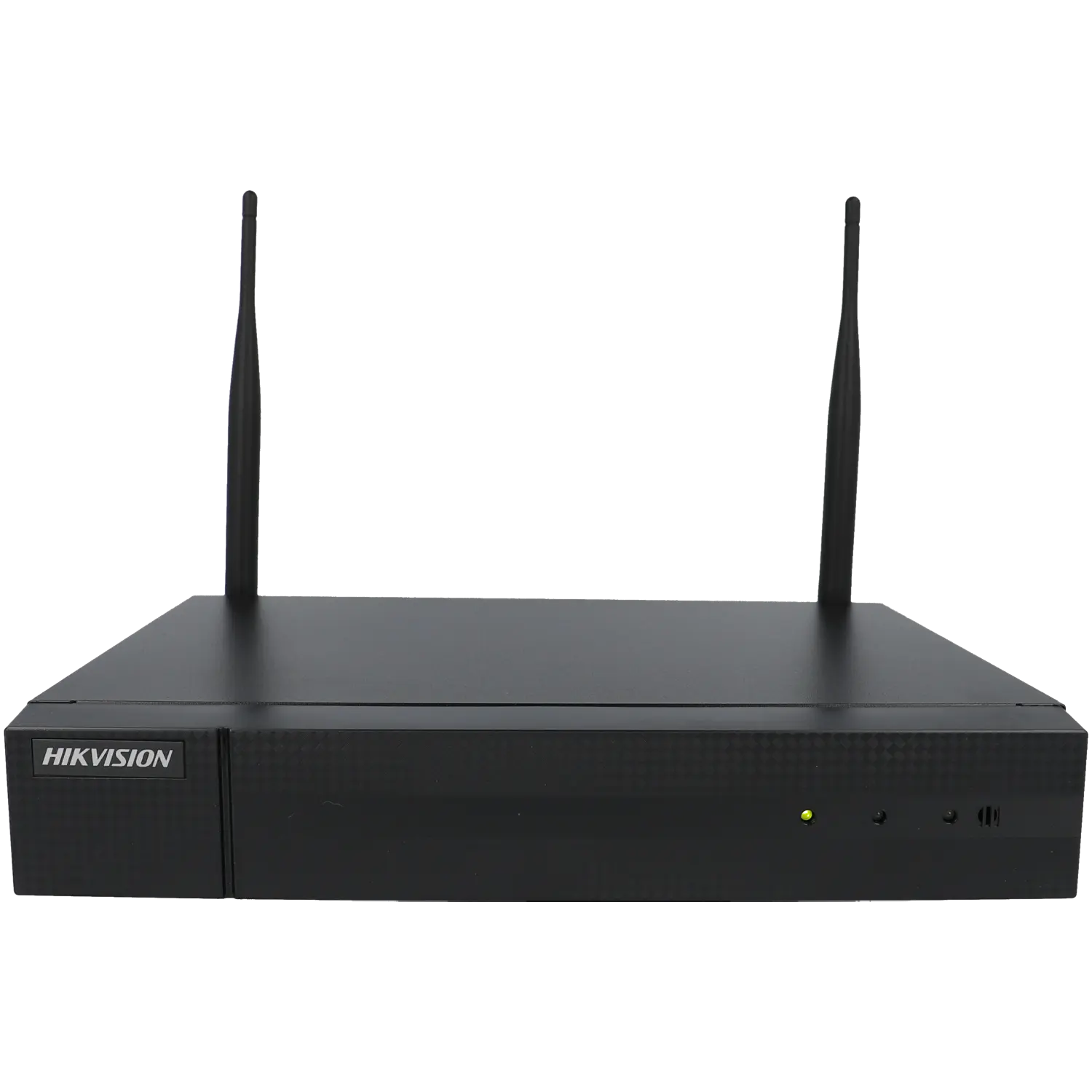

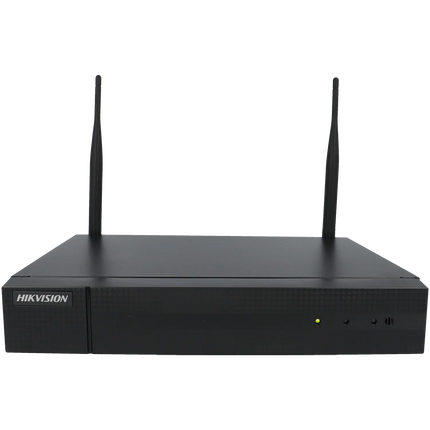

HWN-2108MH-W, 8 Channel WiFi NVR, Without PoE, Max 4MP Cameras

Notice! Hard disk is not included. You can order it at the bottom right.

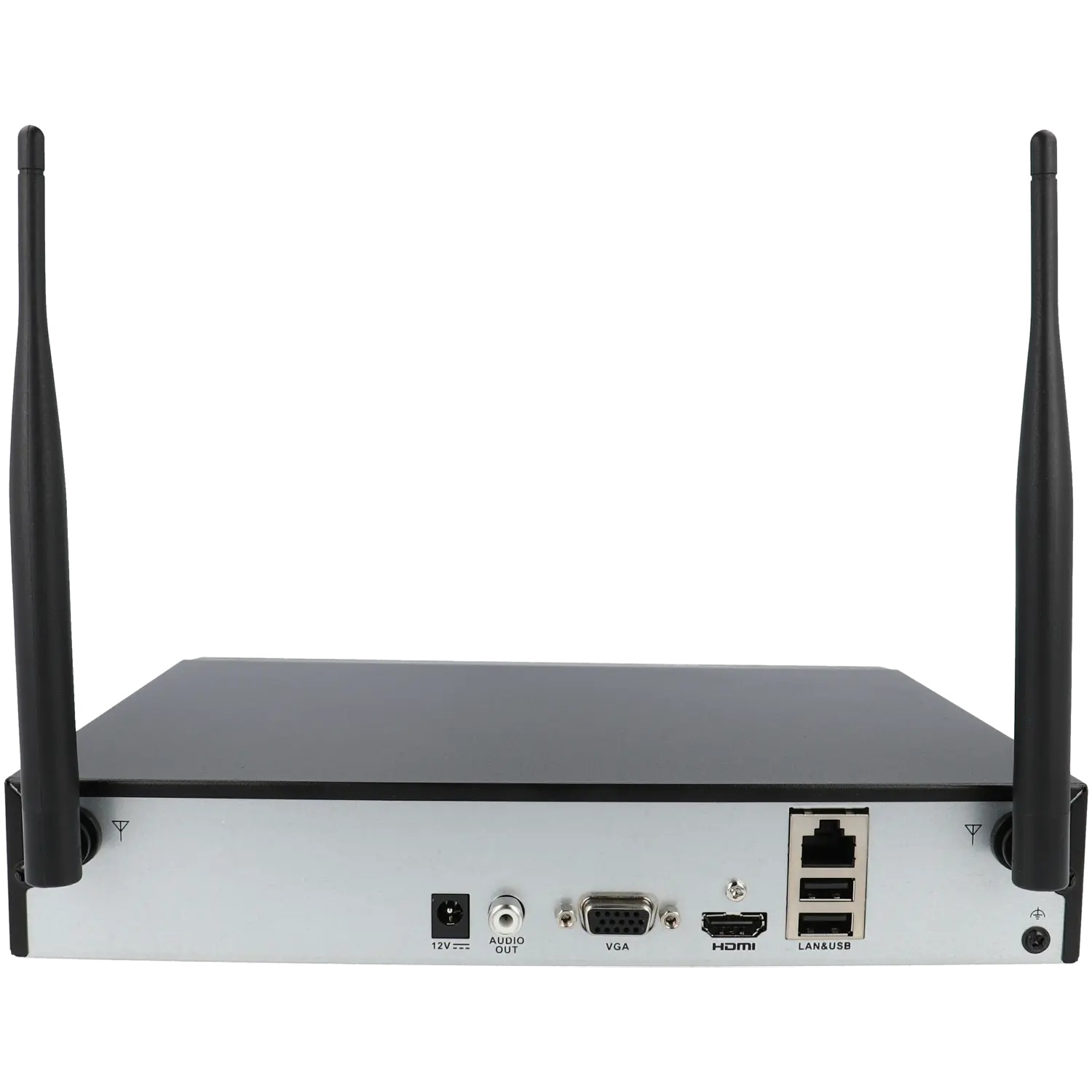

Hikvision network recorder (NVR) which has 8 channels to connect IP cameras with image quality up to 4MP. The NVR recorder has WiFi which makes it easy to wirelessly connect cameras to your own wireless network from this WiFi NVR. The recorder has 1 HDMI input that allows images up to 4MP to be displayed on a monitor and 1 VGA input that allows you to stream images up to Full HD.

The NVR is equipped with 2 USB ports to which you can connect a USB mouse or a USB stick to backup important recordings.

In addition to WiFi cameras, wired cameras can also be added to the recorder via the IP address. With this model up to a maximum of 8 cameras total.

Specifications:

General

• Type: 8-channel Mini 1U WiFi NVR

• Number of IP camera inputs: 8 channels via network cable and/or WiFi module

• Housing / dimensions: Mini 1U, metal housing, approx. 265 × 225 × 48 mm

• Weight (without HDD): ≤ 1.6 kg

Video & Audio

• Resolution IP video input: Up to a maximum of 6 MP

• Compression formats: H.265+, H.265, H.264+, H.264

• Bandwidth: Incoming 50 Mbps, Outgoing 40 Mbps

• Video output: 1× HDMI and 1× VGA, simultaneous output possible

• Output resolutions: 1920×1080, 1280×1024, 1280×720, 1024×768 at 60Hz

• Audio output: 1 channel RCA (linear, approx. 1 KΩ)

Decoding/Storage/Playback

• Decoding capability: 1 channel @ 6 MP (25 fps) or 1 channel @ 5 MP (25 fps) or 4 channels @ 4 MP (12 fps) or 4 channels @ 1080p (25 fps)

• Recording resolutions supported: 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

• Number of simultaneous playback: 8 channels, synchron Playback

• Live view window layouts: 1 / 4 / 6 / 8 / 9 windows

Network & Wireless

• Network interface: 1× RJ-45 10/100 Mbps Ethernet

• Wireless: WiFi module integrated, frequency band 2.4 GHz, antenna structure 2×2 MIMO, transfer rate approx. 300 Mbps, standard IEEE 802.11b/g/n

Storage & Interfaces

• HDD interface: 1× SATA, up to 6 TB capacity

• USB: 2× USB 2.0 rear side

Power & Environment

• Power supply voltage: 12 V DC, 1.6 A

• Power: ≤ 10 W (without hard drive)

• Temperature range: -10 °C to +55 °C

• Relative humidity: 10% - 90%
