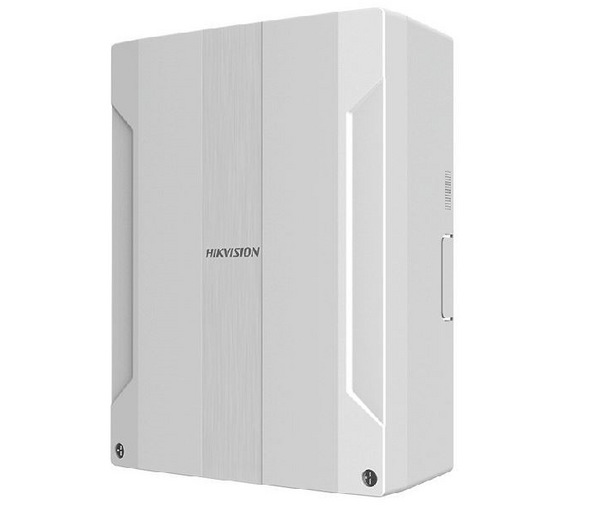

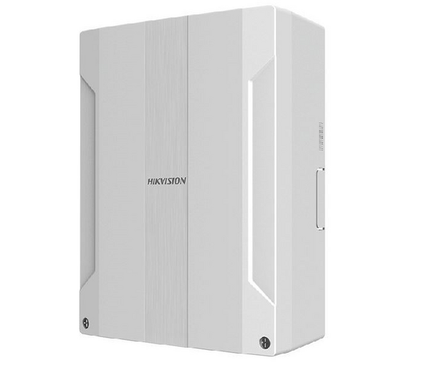

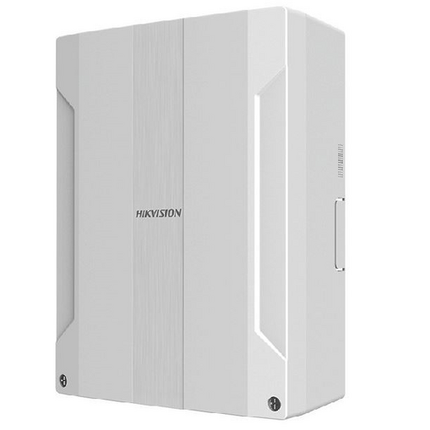

DS-PWA96-M2H-WE, Hybrid control centre

Hikvision DS-PWA96-M2H-WE, Hybrid control panel

Please note that the battery is not included!

You can find the battery at complete your order.

• TCP/IP, Wi-Fi and 3/4G network
• New generation wireless protocol: Tri-X/Cam-X
• Long RF transmission distance
• Way communication with AES-128 encryption
• Connects up to 96 zones/outputs (including 48 PIRCAMs & onboard wired zones/outputs), 48 wireless keyfobs, 4 repeaters, 6 sirens, 8 tag readers & keypads.
• Supports up to 48 network users, including 1 installer, 1 administrator and 46 normal users
• Convergence prompt
• Configuration via web client, mobile client and Convergence Cloud
• Configuration of Hik-Connect and Hik-ProConnect depends on the user's access level
• Push alarm notification via messages or phone calls
• View live videos from Hik-Connect
• Alarm video clips via emails and APP
• Supports LED indicator to indicate system status
• SIA-DC09 protocol, and supports both Contact ID and SIA data format
• Supports Hik-IP Receiver and Hik-IP Receiver Pro for ARC communication

Technische specificaties:

Software features

• Tag 4 8
• Area 32
• Zones Up to 96 (including 48 PIR CAM s & 16 onboard Wired Zones & 2 onboard Wired Outputs)
• Onboard video clips 4
• Installe 1
• User 46
• Admin 1
• Voice Prompt Supported
• Loudspeaker built in Supported
• Tag reader built in No
• Memory Log stored 5000
• Programming tools Hik-Connect/Hik-Pro Connect/Web Portal/ IVMS4200/ Convergence Cloud
• Firmware upgrade APP/Web Portal
• Arm modes Away/Stay
• Automatic Arm/Disarm Timers Supported
• Forced Arming with Open Zones Supported
• Diagnostics via the APP or Web Supported

ARC protocol

• SIA DC09(SIA level 2, Contact ID), ISUP, ISAPI (SDK)
• Hik-IP Receiver & Hik-IP Receiver Pro (Sur-Gard & Ademco 685)
• Supports video verification and remote control
• User APP for operating Supported
• Installer APP for programming Supported
• Web server for maintenance (offline configuration)Supported

Hardware features

• Power Output 2 onboard (12v, total 1A)
• RS 232 output Supported
• SIM slot Dual

RF transmission

• Two-way Wireless Communication Support
• RF Frequency 868Mhz
• Wireless Security Frequency Hoping 128 AES Encryption
• 3/4G on board Supported
• Electrical characteristics
• Power supply Built in power supply

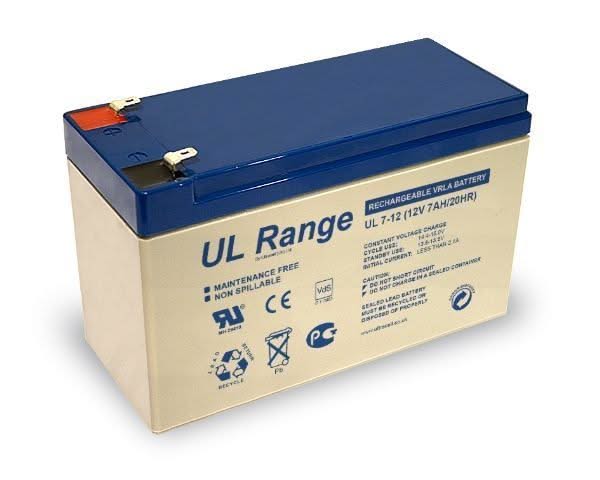

• Battery type 12v 7Ah Storage battery (Battery is not included by default)
• Battery life spanUp to 36 hours
• Wireless transmission
• Wired network Supported
• Wi-Fi Standard Supported

Display

• LEDs Status Arm/Disarm, Alarm, Tamper, Fault, Cloud, Power

General

• Operation temperature-10 °C to 40 °C
• Shell material Plastic
• Dimension (WxHxD) 261*199*86. 4mm
• 1083g (No battery)
• Color White
• Device management
• Keyfob 48
• Wireless sounder 6
• Keypad8 (Including Tag reader)
• Wireless Repeater 4
• PIR Cam Supported
