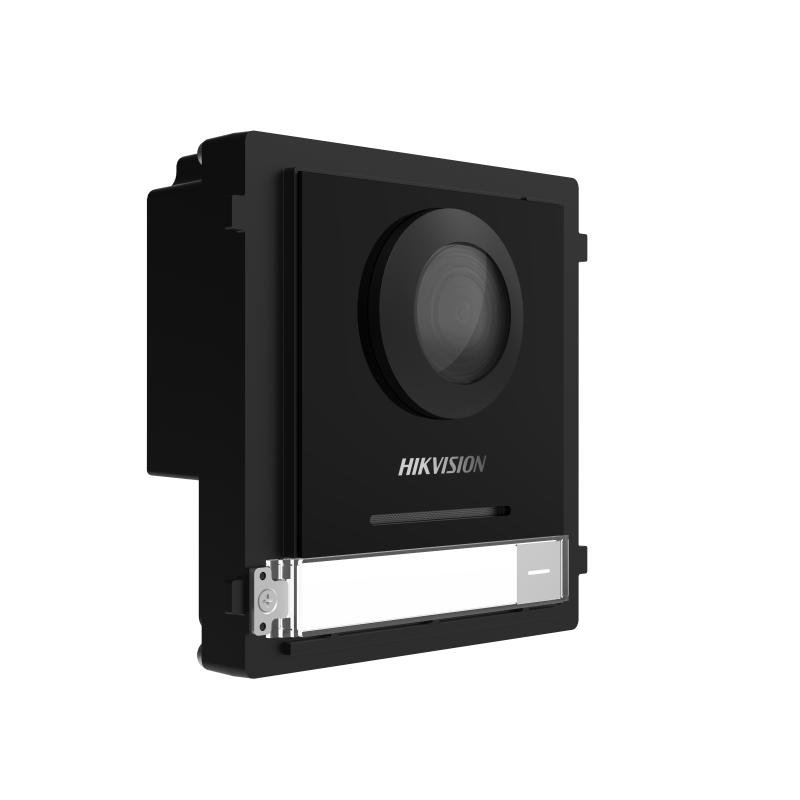

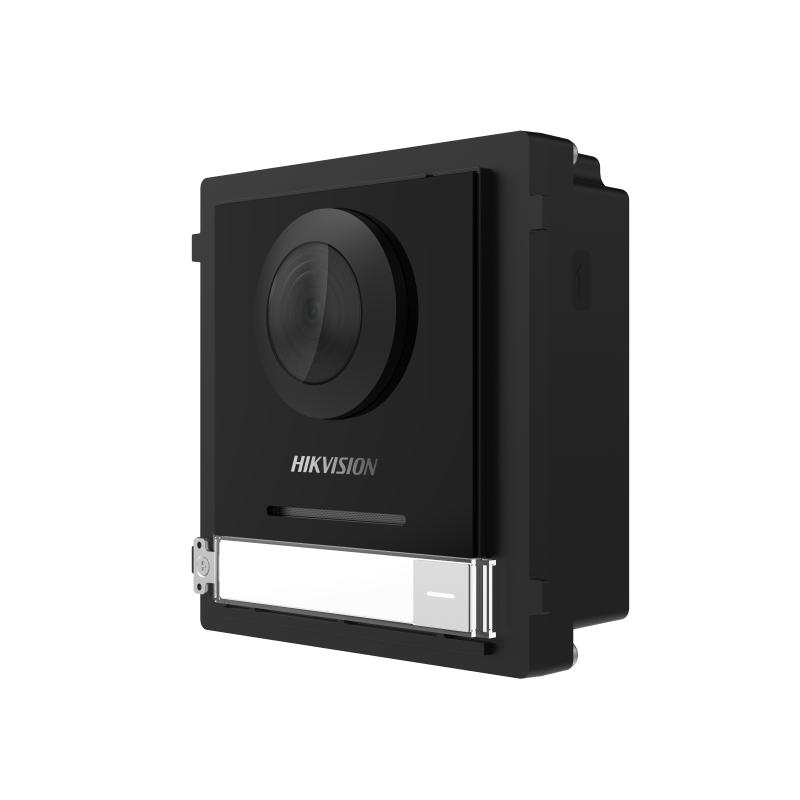

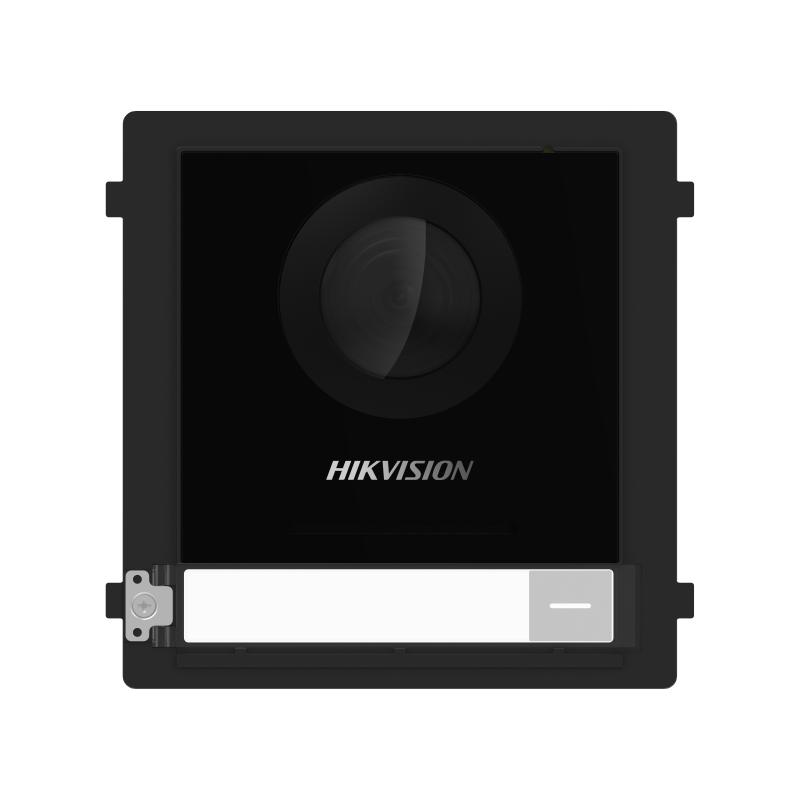

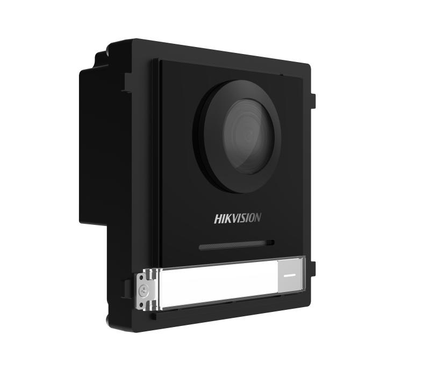

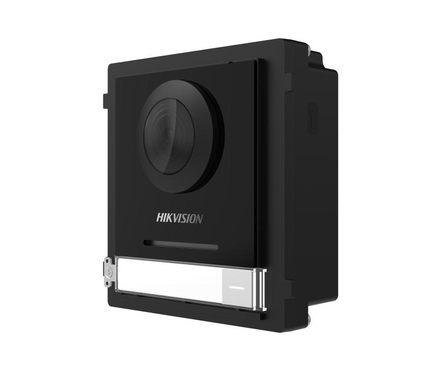

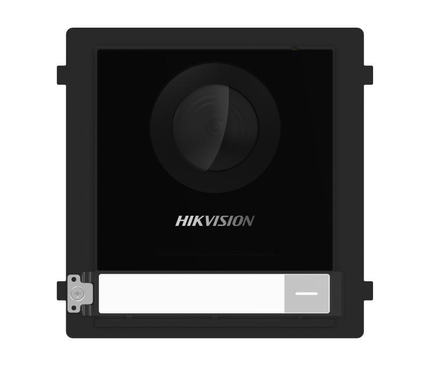

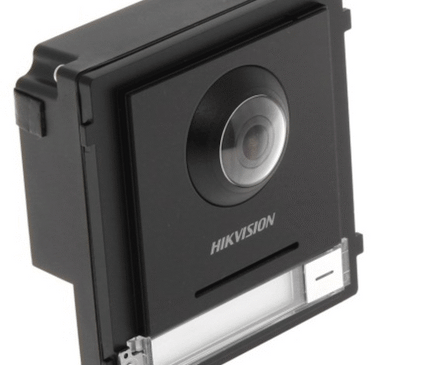

DS-KD8003Y-IME2 Outdoor unit 2-wire

Hikvision's video door entry products are suitable for a variety of applications, including houses and flats. Since IP networks transfer a larger amount of data, higher video quality can be achieved. IP series products can be integrated into CCTV systems and have additional features, such as management via a mobile app.

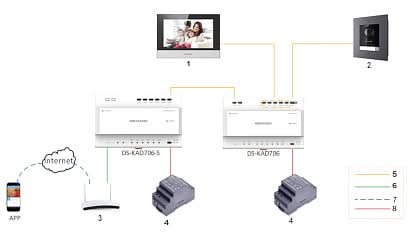

Hikvision Intercom systems can be expanded from 1 outdoor station and 1 indoor station up to and including 16 outdoor stations and 500 indoor stations. Each main indoor station can be extended with 5 indoor station extensions. 2-wire can also be combined with IP (PoE) without any problems.

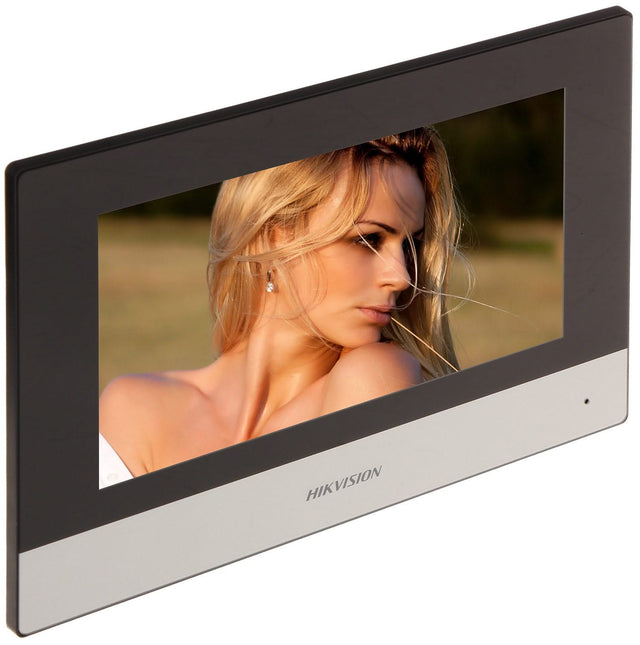

This outdoor unit should be paired with an indoor unit.
All Y-generation Hikvision intercom products can be combined with each other. For 2nd generation 2-wire intercom products, this can only be done via the IP network. IP and 2-wire products can be used together.

• Specificaties:

• Operation System - Embedded Linux operation system
• ROM - 32 MB
• RAM - 256 MB
• Processor - Embedded Processor

  Video Parameters
• Lens - 1
• Resolution - 2 MP
• FOV Horizontal: 146°, Vertical: 82°
• Wide Dynamic Range - (WDR) Support
• Supplement Light - IR light, up to 3 m
• Video Compression Standard - H.264

  Audio Parameters
• Audio Input - 1 built-in omnidirectional microphone
• Audio Compression Standard - G.711 U, G.711 A
• Audio Output - 1 built-in loudspeaker
• Audio Compression Bitrate - 64 Kbps
• Audio Quality - Noise suppression and echo cancellation
• Volume Adjustment - Adjustable

  Capacity
• User Capacity - 2000
• Face Capacity - NA
• Linked Indoor Station Capacity - 500
• Sub Door Station Capacity - 16

  Device Interfaces
• Alarm Input - 4 (2 exit buttons and 2 door contacts by default)
• TAMPER - 1
• Exit Button - 2 (2 for lock control)
• RS-485 - 1 (1 for Hikvision's sub-module communication)
• Lock Control - 2 relays, Max. to 30 VDC, 2 A
• Door Contact Input - 2
• Two-Wire IP Interface - 1

  General
• Button - 1
• Installation - Surface mounting, flush mounting
• Weight -
  - Net weight: 0.380 kg
  - Gross weight: 0.541 kg
• Protective Level - IP65
• Working Temperature - -40° C to 60° C (-22° F to 140° F)
• Working Humidity - 10% to 90%
• Dimension (W × H × D) 100 mm × 98 mm × 42 mm
• Power Supply - Powered by KAD704Y or KAD706Y series distributor
• Application Environment - Outdoor
• Power Consumption - ≤ 4 W
