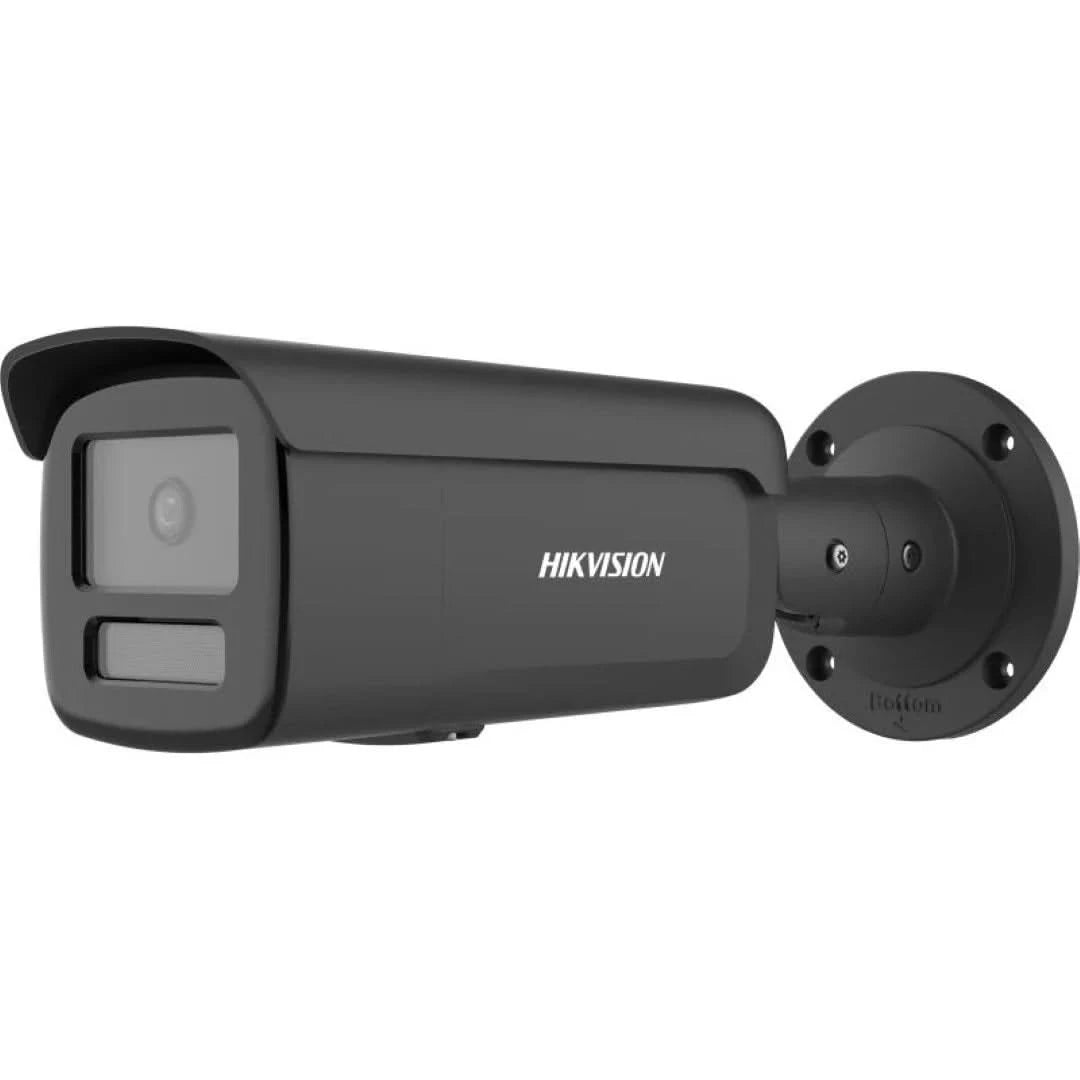

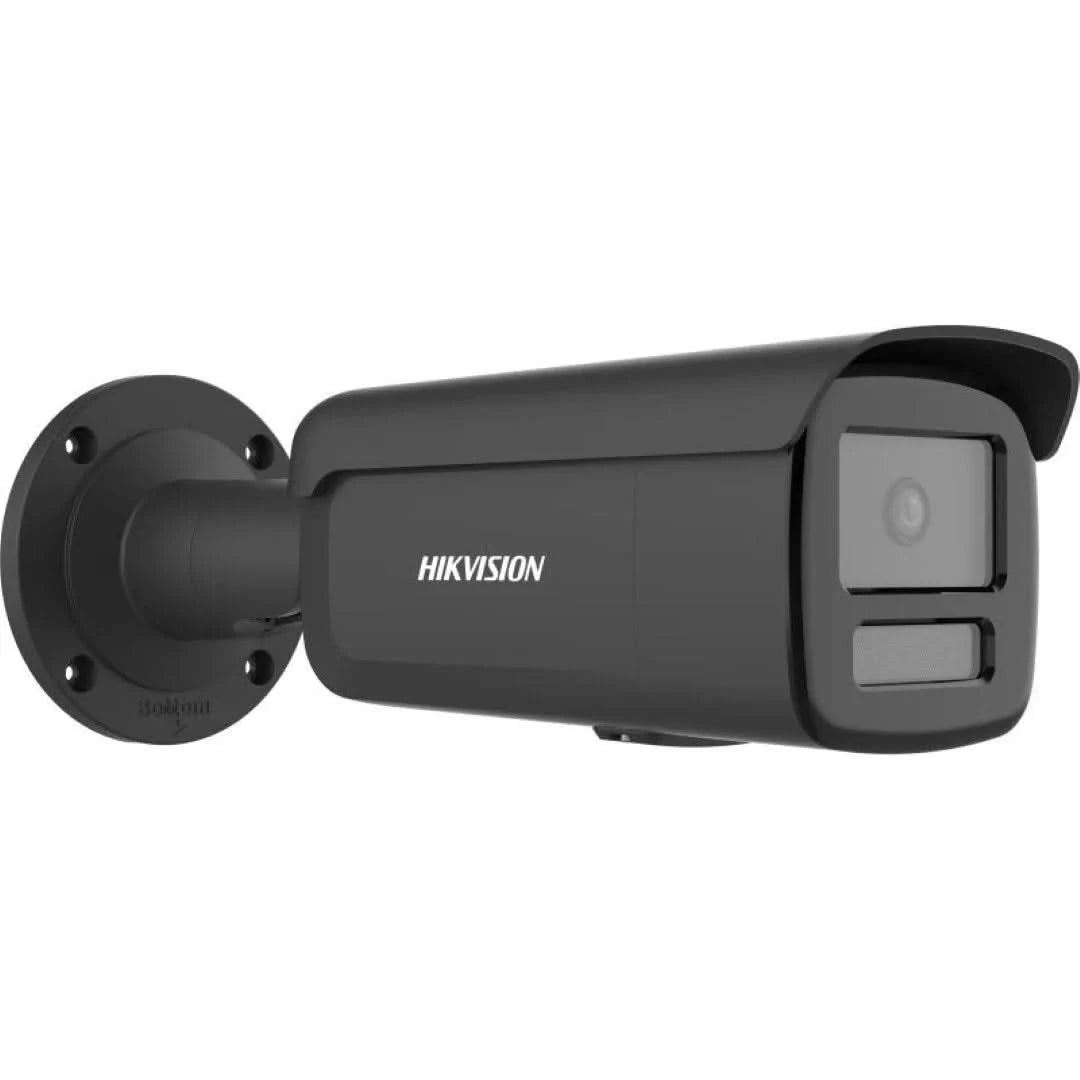

DS-2CD2T86G2H-4I Black, 8MP 4K, Bullet, Acusense, 80m IR. Darkfighter and PoE

The Hikvision DS-2CD2T86G2H-4I is a powerful 8 megapixel security camera designed for both day and night surveillance with impressive image quality, smart features and rugged design. This fixed bullet camera uses Hikvision's AcuSense technology, making it possible to very accurately detect and distinguish people and vehicles from other objects.

Thanks to its 4mm fixed lens and wide 105° viewing angle, this camera is ideally suited for securing medium to large outdoor areas such as parking lots, business parks and entrances. The 1/1.8" image sensor delivers images in Ultra HD 4K (3840 x 2160) with rich detail and color reproduction, even in extremely low light (down to 0.0008 Lux in color).

The camera features IR illumination, providing up to 80 meters of night vision and active deterrence. Smart IR and Smart LED ensure optimal illumination without overexposing objects close to the lens.

Specifications:

• Image sensor: 1/1.8" Progressive Scan CMOS

• Maximum resolution: 8 Megapixel (3840 x 2160)

• Main stream bit rate: 25 fps (3840x2160, 3200x1800, 2688x1520, 1920×1080, 1280×720)

• Extra stream bitrate: 25 fps (1280x720, 640x480, 640×360)

• Third stream bitrate: 10 fps (1920x1080, 1280×720, 640x480, 640×360)

  • (Third stream is available under certain configurations)

• Video Compression: H.265+ / H.264+ / H.265 / H.264

• Bitrate: 32 Kbps ~ 16 Mbps

• Lens: 4 mm

• Viewing angle (FOV):

  • Horizontal: 90°

  • Vertical: 45.8°

  • Diagonal: 109.4°

• Detection performance:

  • Detection (D): 109 m

  • Observation (O): 43 m

  • Recognition (R): 21 m

  • Identification (I): 10 m

• Electronic shutter: 1/3 ~ 1/100.000 s

• Minimum illumination:

  • Color : 0.0008 Lux @(F1.0, AGC ON)

  • 0 Lux with IR (up to 80 m range)

• Day/Night modeMechanical IR filter (ICR)

• Image optimizations:

  • WDR (120 dB)

  • BLC (Backlight Compensation)

  • HLC (Highlight Compensation)

  • 3D-DNR (Digital Noise Reduction)

  • AGC (Automatic Gain Control)

  • AWB (Automatic white balance)

  • ROI (Region of Interest)

  • Mirror function

  • Privacy masking

• ANR (Automatic Network Replenishment): Yes

• Motion Detection:

  • Motion Detection 2.0 with classification of people and vehicles

  • Motion Detection 2.0, Face Recognition and AcuSense cannot be used simultaneously. Enabling one function disables the other two

• Intelligent functions:

  • AcuSense with Deep Learning technology

    • Classification of people and vehicles

    • Reduction of false alarms applied to:

      • Line crossing

      • Area intrusion

      • Incoming area

      • Outgoing area

  • Cannot be combined with motion detection 2.0 or face recognition

• Face recognition:

  • Face Capture

  • Cannot be used simultaneously with AcuSense or motion detection 2.0

• Internal storage: MicroSD card slot up to 512GB

• Network interface: Ethernet 10/100 Base-T

• Remote access via:

  • Web browser

  • Hik-Connect smartphone app

  • PC software iVMS-4200

  • Hik-Central platform

• Compatibility: ONVIF, ISAPI

• Power supply:

  • DC 12 V / 380 mA / max. 10 W

  • IEEE802.3af PoE

• Degree of protection: IP67 (weatherproof)

• Material: Metal

• Operating Temperature: -30ºC ~ +60ºC

• Dimensions: 93.3 mm (w) x 91.2 mm (h) x 286.7 mm (d)

• Mounting baseØ base 105 mm / Ø between screws 89 mm / 4 screws

• Weight: 1180 g
