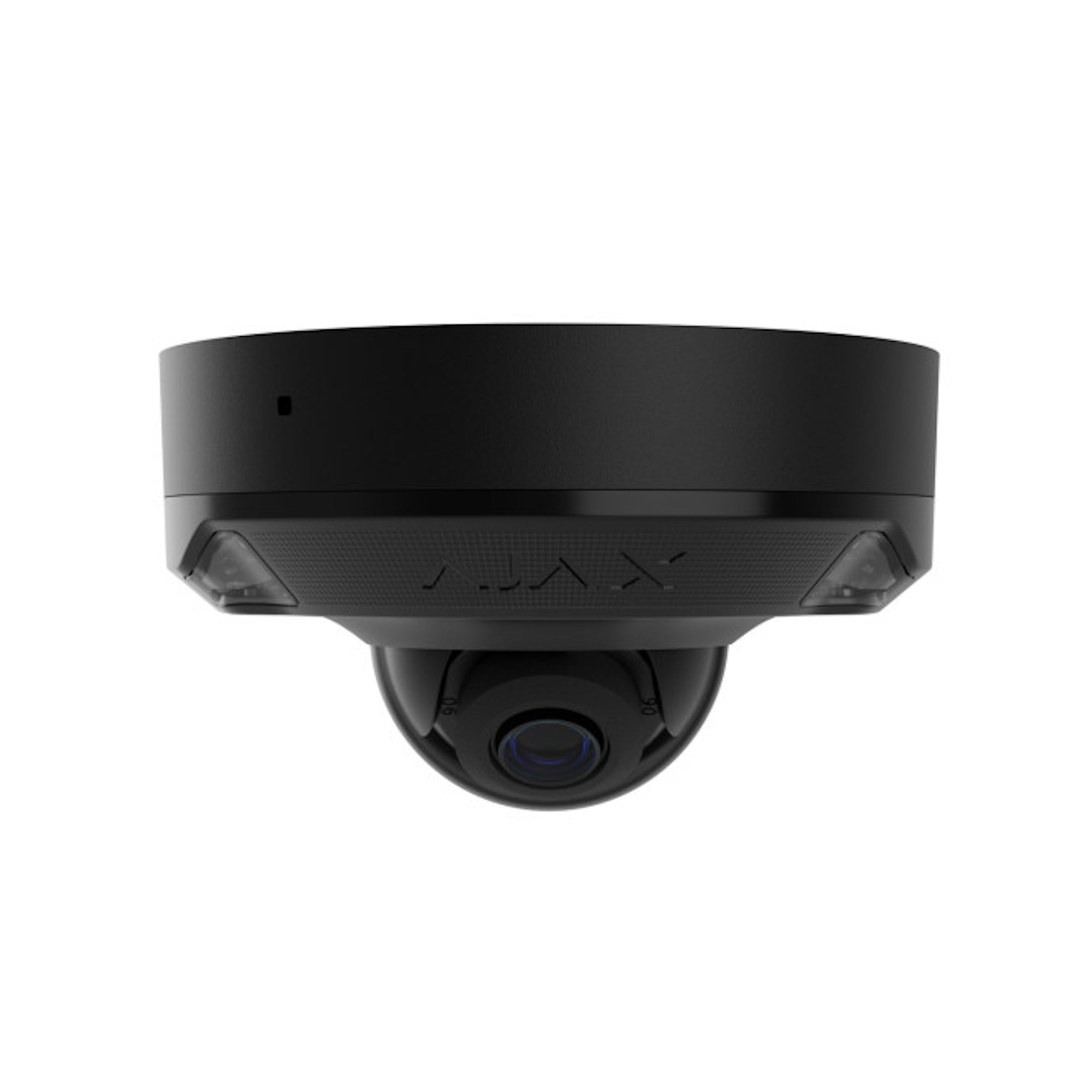

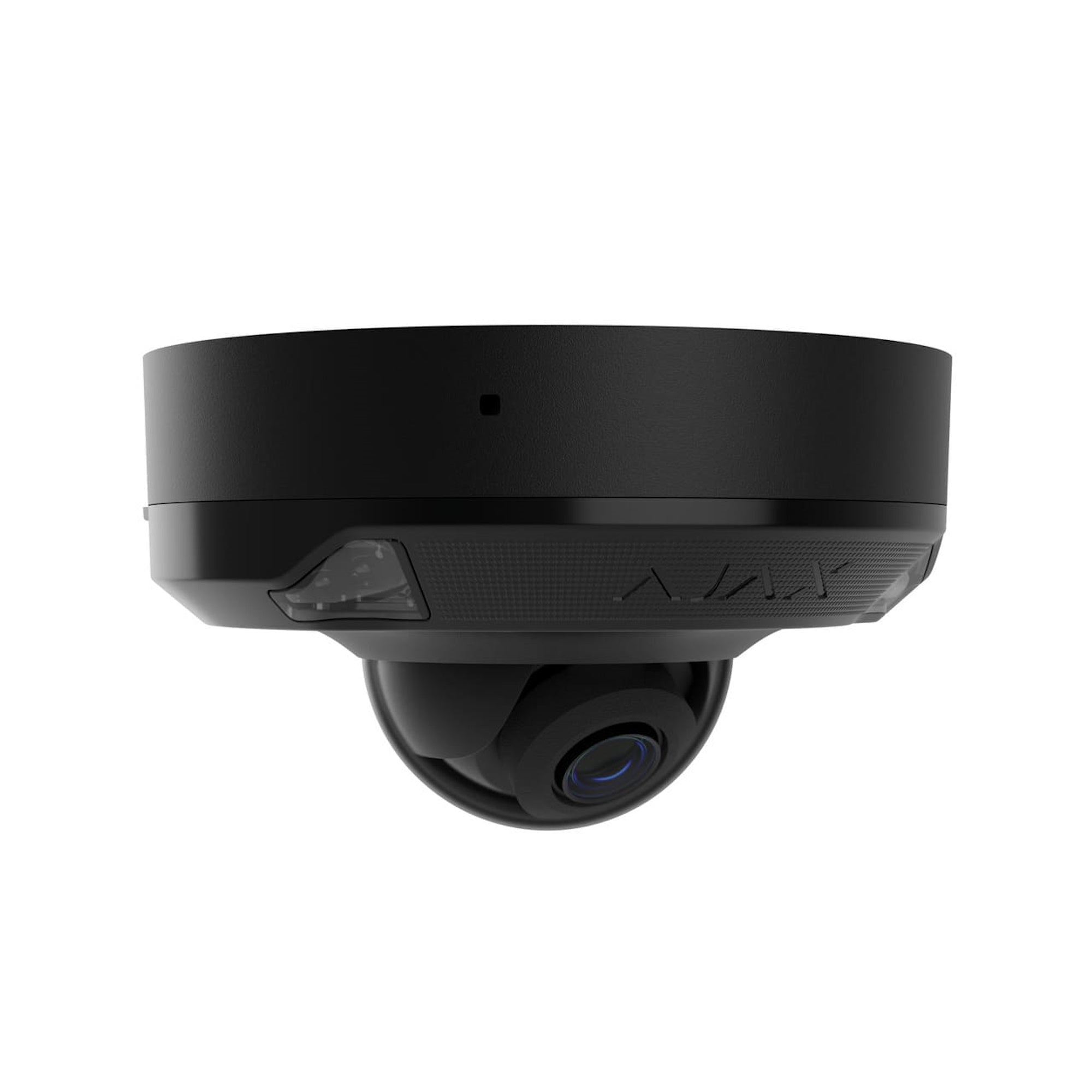

DomeCam Mini HL Black 8MP 4K Hybrid Lighting IP Camera

AI-powered surveillance with hybrid lighting for bright colors

DomeCam Mini HL combines accurate motion detection with AI-based recognition of people, pets and vehicles. This prevents unnecessary alarms. Thanks to hybrid lighting, the camera delivers bright, colorful images even in low light by switching from IR to white light. When activated, the white light can also deter intruders. In an Ajax app, users have complete control over their privacy. Access rights determine whether anyone can view the live stream or archive. DomeCam Mini HL works perfectly with intrusion, fire and automation devices when it is part of the Ajax system. This helps create a unified security solution where each component reinforces the others for the most effective security.

Bright colors, even in the dark

The hybrid lighting in DomeCam Mini HL cameras automatically switches between infrared and white light based on object recognition or motion detection. This ensures high image quality even in low light and at night. The feature provides colorful images that help identify clothing, vehicles or other critical details. The sudden white light can also act as a deterrent, letting burglars know they have been detected.

Customized lens for every scene

Choose from a variety of lenses to meet your installation needs. Use wide-angle lenses for open areas such as the perimeter of a building or choose a narrower viewing angle for hallways and compact spaces. Higher resolution provides better coverage and detail over large areas, while lower resolution is ideal for confined spaces where extreme detail is not a priority.

An AI-powered camera

Ajax cameras offer AI-powered object recognition for efficient event recording and storage. Users can configure recording based on their needs. A camera can record continuously, or when triggered by motion or the built-in AI. Settings help capture critical events, such as a vehicle entering a parking lot or a person entering a restricted area. This reduces unnecessary footage and makes it easier to review recordings.

AI processing is done directly in the camera, eliminating the need for additional equipment or subscriptions.

Users and security personnel can easily monitor areas via smartphone and receive instant notifications when motion is detected. No specialized security training is required.

Accurate video recording with built-in motion detection

Optimize your video archive with intelligent motion detection. Configure motion recording within specific zones at the pixel level, so that only relevant activity is recorded when movement occurs in the selected area. Strict event filtering saves storage space and makes navigating the archive much smoother.

Sirens activate upon detection

When the AI in video devices detects motion or a specific object, the system can automatically activate the sirens added to the hub so that an alarm can be heard. Users can enable the feature separately for each video device and configure per camera which specific events trigger the sirens.

Specifications:

Video & Optics

• Resolution: up to Up to 3840 × 2160 px (4K UHD), 8 MP

• Viewing angle: approximately 100°-110° for the 2.8 mm variant or 4 mm (angle of view approximately 75°-85°)

Illumination & Dynamic Range

• HybridLight: combines IR and white light for full color image in the dark (up to approx. 15 m range)

• True WDR: corrects contrast differences in complicated scenes

Video & Storage

• Codec: H.264 and H.265 (efficient storage and bandwidth)

• Storage options:

  • micro SD card up to 256 GB (Class 30 or higher is recommended)

  • NVR: SATA HDD up to 16 TB (3.5") (optional)

Network & Security

• Communications: wired Ethernet up to 100 Mbps and PoE (802.3af/at) or 12 V DC ±20 %, 1 A (max. consumption ~15 W)

• Video transmission: via Ajax's own JetSparrow P2P protocol - fast and encrypted

• Sabotage protection: mTLS encryption, Secure Boot, OTA signature verification, cloud-based authentication, advanced access control

AI Smart Features

• Detection: human movement, pets and vehicles are recognized thanks to AI, motion detection with adjustable zones

• Visual verification of alarms: pairs with Ajax detectors - images are sent directly to app in case of alarm

• Privacy zones: parts of the image can be hidden from sensitive information

Construction & Environment

• Installation: easy installation with template, minimal loose parts, QR connection

• Housing: compact dome shape, metal housing, IP65 rating (dust and splash water resistant)

• Dimensions / Weight: approx. 113 × 113 × 60 mm, ± 360 g

• Temperature & humidity range:

  • Temperature: -30 °C to +60 °C

  • Humidity: up to 90%

Audio & Extras

• Built-in microphone: with support for audio compression such as G.711-ULAW/ALAW, G.726 and G.722

• Videowall: dashboard view with multiple cameras simultaneously via app (mobile and desktop)
